Introduction

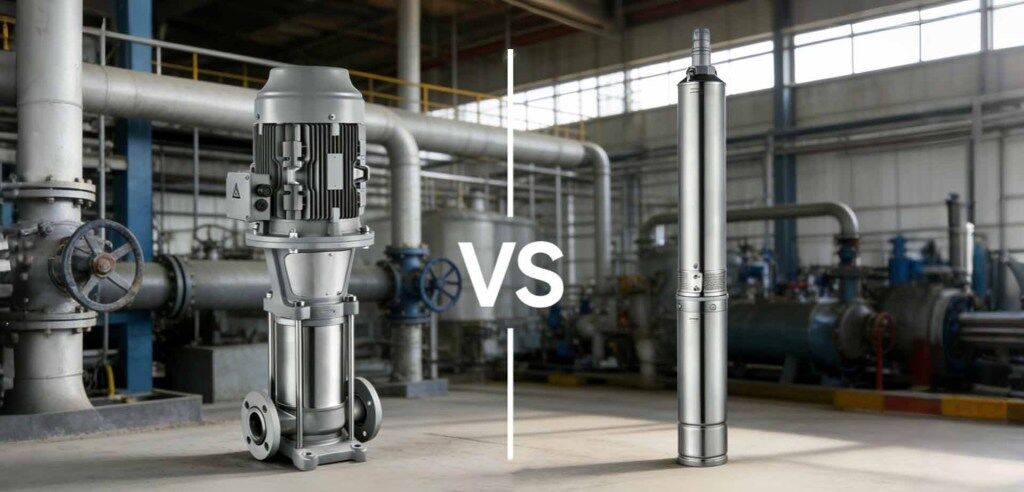

   In the world of industrial and commercial fluid handling, selecting the right pump technology is critical for efficiency, reliability, and cost-effectiveness. Two names that often appear in specifications and discussions are the vertical centrifugal pump and the vertical turbine pump. While they may seem similar at a glance—both are vertical, and both utilize centrifugal force—they are distinct machines engineered for different primary missions. Confusion between them can lead to improper application, reduced performance, and costly operational issues. This comprehensive guide will demystify these two pump categories. We will explore the core vertical centrifugal pump definition, dissect the unique design of the vertical turbine pump, and compare their components, working principles, applications, and costs. By the end, you will know exactly which pump is the right tool for your specific job, ensuring optimal system design and performanca.

Key Components and Their Functions: A Side-by-Side Look

Component	Vertical Centrifugal Pump (e.g., Inline/Sump)	Vertical Turbine Pump (VTP)
Motor	Top-mounted, close-coupled to the shaft.	Top-mounted on the discharge head.
Pump Casing / Hydraulic End	Single volute or diffuser casing.	Multi-stage bowl assembly (stack of impellers & diffusers).
Impeller(s)	Usually a single impeller (open/closed).	Multiple impellers in series (defines the pump).
Shaft	Short, direct connection from motor to impeller.	Long line shaft running inside the column pipe.
Bearing System	Bearings housed above fluid in a bearing housing.	Complex system: Thrust bearing in discharge head; multiple line shaft bearings (often water-lubricated) along the column.
Column / Support Structure	Typically a short pump casing or sump barrel.	Long column pipe (custom length), provides structural support and acts as a water conduit.
Suction Inlet	Standard suction flange or foot valve.	Suction bell at the bottom of the bowl assembly.
Seals	Mechanical seal or packing at the shaft penetration.	Seals at discharge head; bowl assembly is internally sealed.
Primary Function of Component	Contain fluid, convert energy in one stage, support shaft.	Generate high pressure in stages, transmit power over long distance, support long rotating assembly.

Working Principle: Kinetic Energy to Pressure

Aspect	Vertical Centrifugal Pump Working	Vertical Turbine Pump Working
Energy Transfer	Single impeller imparts kinetic energy. Fluid is thrown outward by centrifugal force.	Multiple impellers in series each impart kinetic energy. Process is repeated at each stage.
Energy Conversion	High-velocity fluid enters volute/diffuser casing. Casing expands, slowing fluid to convert kinetic energy to pressure in one major step.	High-velocity fluid from each impeller enters its surrounding diffuser (bowl). The diffuser slows the fluid, converting velocity to pressure incrementally at each stage [2].
Pressure Buildup	Total discharge head is generated by the single impeller and casing.	Total discharge head is the sum of the pressure added by each stage. This enables extremely high heads.
Flow Path	Straightforward: Suction → Impeller → Volute → Discharge.	Sequential: Suction Bell → 1st Stage Impeller → 1st Stage Diffuser → 2nd Stage Impeller → … → Final Diffuser
Key Differentiator	Simpler, single-step pressure rise.	Complex, multi-step additive pressure rise for deep lift applications.

Advantages: Why Choose One Over the Other?

Application Guide: Matching the Pump to the Job

Application / Duty	Recommended Pump Type	Reasoning
HVAC Circulation, Booster Service	Vertical Centrifugal Pump (Inline Type)	Compact, efficient for closed-loop systems and pressure boosting where suction is readily available.
Industrial Fluid Transfer, Process Pumping	Vertical Centrifugal Pump (Process or Inline Type)	Handles various fluids; simple installation and maintenance suit plant environments.
Sump Drainage, Effluent Transfer	Vertical Centrifugal Pump (Sump or Cantilever Type)	Designed for pit/sump environments; can handle solids and intermittent duty.
Municipal/Agricultural Deep Well Water Supply	Vertical Turbine Pump (Deep Well Type)	Multi-stage design generates the necessary high head to lift water from great depths [1].
Cooling Water Intake from River/Lake	Vertical Turbine Pump (Often Short-Coupled or Canister Type)	Can be set in a wet pit or caisson to pump large volumes of water with the required lift to the plant.
High-Rise Building Water Supply from Deep Well	Vertical Turbine Pump	Capable of generating the very high pressures needed for tall buildings directly from the source.
Raw Water Supply for Industrial Plant from Reservoir	Vertical Turbine Pump	Efficiently moves large volumes from a surface water source with significant lift to the plant.

Price and Budget Considerations

Cost Factor	Impact on Vertical Centrifugal Pump Price	Impact on Vertical Turbine Pump Price
Material of Construction	Major factor (e.g., cast iron vs. stainless steel).	Major factor. Bowl assemblies often in bronze or stainless.
Motor (HP, Efficiency)	Directly impacts cost.	Directly impacts cost.
Hydraulic Design	Cost increases with required head & flow, but generally simpler.	Dominant factor. Number of stages (bowls) directly dictates head capability and cost. More stages = higher cost.
Structure & Shafting	Minimal cost for casing/support.	Major cost driver. Column pipe length and material (can be hundreds of feet) and the long line shaft are significant expenses.
Bearing & Seal System	Standard bearing housing and seal.	Complex system: expensive thrust bearing, multiple line shaft bearings, contributing to higher cost.
Engineering & Customization	Often standard or slightly modified.	Frequently engineered-to-order for specific well depth and performance, adding engineering cost.
Installation	Vertical centrifugal pump installation is relatively straightforward (pad, baseplate, align).	Highly specialized. Requires well development, setting of long column, precise alignment. Installation cost can rival pump cost.
Typical Cost Range (Pump Only)	50,000+ (highly variable by size/material).	250,000+ (deep, large-capacity wells cost significantly more).

Conclusion: Selecting Your Champion

     The choice between a vertical centrifugal pump and a vertical turbine pump is not a matter of one being “better” than the other. It is a matter of selecting the right toool for a specific job.

• Choose a Vertical Centrifugal Pumpwhen you need to move fluid efficiently within a plant, building, or from a shallow source. It is your go-to for space-saving, general transfer, circulation, and boosting applications. Its installation is simpler, and its initial price is generally lower for standard duties.
• Choose a Vertical Turbine Pumpwhen your primary challenge is lifting fluid from a significant depth, such as a well, or from a large, open water source. It is a specialized, heavy-duty machine built for high-head, deep-setting applications where other pump types fail. Its complex assembly and higher cost are justified by its unique capability.

     Understanding the vertical centrifugal pump definition and the specialized role of the VTP empowers yau to make an informed specification. Always match the pump’s core strength—whether it’s the versatile, compact design of a standard vertical pump or the deep-lift, multi-stage power of a turbine pump—to the fundamental demands of your application. For expert guidance in navigating this critical decision and sourcing the optimal pump for your system, consult with the engineering specialists at Virheos.com.

References:

[1] Trillium Flow Technologies. “What is a Vertical Turbine Pump?” Trillium Flow Technologies

[2] Testbook. “Vertical Turbine Pump: Definition and Diagram.” Testbook
