Single-Stage vs. Multi-Stage Centrifugal Pumps: The Engineer’s Guide to Optimal Selection
Selecting the right centrifugal pump is a critical decision that impacts the efficiency, cost, and longevity of your industrial system. The choice often boils down to a fundamental question: single-stage or multi-stage?
This isn’t merely a question of preference; it’s a technical decision rooted in your system’s specific requirements. As experts at ViRhoes, we move beyond simply selling pumps to providing the engineering insight you need to make an informed choice. This guide will delve into the structural differences, performance characteristics, and key selection criteria to help you confidently specify the right pump for applications like boiler feed water, high-pressure cleaning, and building water supply.

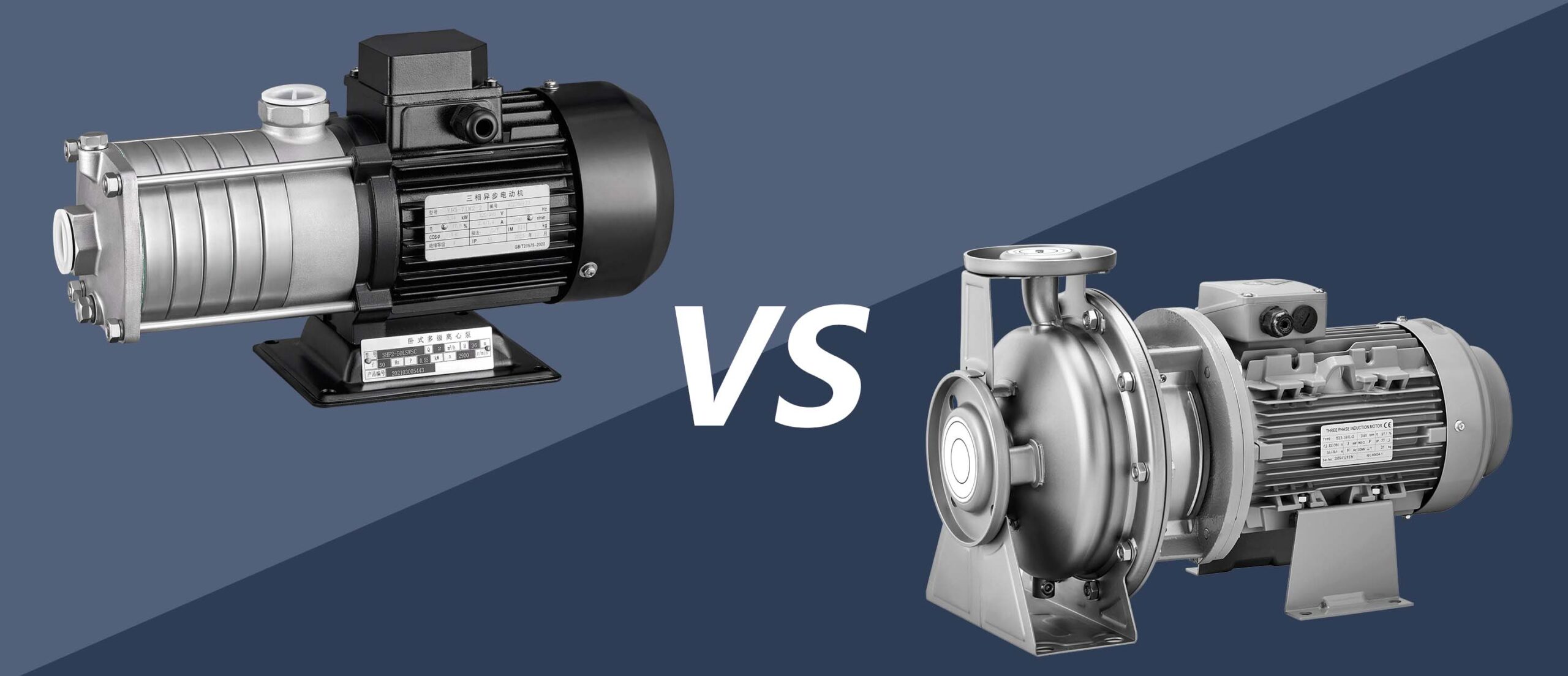

Understanding the Core Design Difference
The primary distinction lies in the number of impellers, the rotating components that impart energy to the fluid.
Single-Stage Centrifugal Pumps:These pumps feature a single impeller. They are designed to generate a relatively high flow rate at a low to moderate head (pressure). Common examples include end-suction pumps, which are known for their simplicity, compact design, and ease of maintenance. They are the workhorses for many general-purpose applications.
Multi-Stage Centrifugal Pumps:These pumps contain two or more impellers (stages) arranged in series within a single casing. Each impeller increases the fluid’s pressure incrementally. This design allows multi-stage pumps to achieve significantly higher heads than single-stage pumps of comparable size and speed, making them ideal for high-pressure services.
Performance Showdown: Head, Flow, and Efficiency
The structural difference directly translates to distinct performance curves.
Head-Flow Characteristic (H-Q Curve):This is the most critical curve. A single-stage pump’s curve is typically flatter, offering a stable flow over a range of pressures. A multi-stage pump’s curve is steeper, delivering a high head even at lower flow rates. For a system with high static pressure or friction losses (like pushing water to the top of a tall building), a multi-stage pump is necessary.
Efficiency:Single-stage pumps often have a high peak efficiency point for their specific duty range. Multi-stage pumps can also be highly efficient, but therr efficiency band is optimized for high-head, lower-flow applications. Selecting a pump whose Best Efficiency Point (BEP) aligns with your system’s normal operating point is crucial for minimizing energy costs.

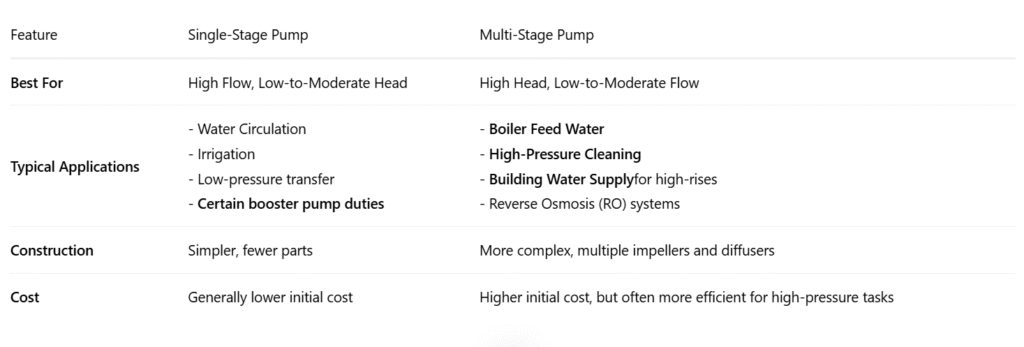

Best-Suited Applications: Matching the Pump to the Task
The 4-Step Professional Selection Framework
Choosing between single-stage and multi-stage is a systematic process. Here ara the key parameters every engineer must calculate.
Step 1: Accurately Determine Your System’s Head Requirements
This is the non-negotiable starting point. The Total Dynamic Head (TDH)is the sum of:
Static Head:The vertical height the liquid must be lifted.
Friction Head:The pressure loss due to pipe friction, fittings, and valves.
Pressure Head:The pressure required at the discharge point (e.g., pressure needed in a boiler).
Selection Rule:If your calculated TDH exceeds the capability of a standard single-stage pump (often above ~150-200 feet), a multi-stage pump becomes the logical choice.
Step 2: Calculate Net Positive Suction Head (NPSH)**
NPSH is critical for preventing cavitation, a destructive phenomenon that damages impellers and reduces performance.
NPSH Available (NPSHa):This is a property of your system—the absolute pressure at the pump suction minus the fluid’s vapor pressure. You calculate it based on your tank setup, pipe layout, and fluid properties.
NPSH Required (NPSHr):This is a property of the pump, provided by the manufacturer.
The Golden Rule: NPSHa must be greater than NPSHr, with a safety margin of at least 1-1.5 feet (or more for critical applications).Multi-stage pumps, due to their design, can have a higher NPSHr than single-stage pumps for the same flow, making suction conditions a major deciding factor.
Step 3: Analyze the System Resistance Curve
Plot your system curve (Head vs. Flow). The pump’s H-Q curve must intersect your system curve at or near its Best Efficiency Point (BEP). A multi-stage pump’s steeper curve is less affected by changes in system pressure, offering more stable flow in systems with varying head conditions.
Step 4: Consider Lifecycle Costs
Look beyond the initial purchase price.
Energy Consumption:A pump operating at its BEP consumes less power. For a continuous-duty application like a 220v water pumpfor building supply, a slight efficiency gain translates to significant long-term savings.
Maintenance:Single-stage pumps are generally easier and less expensive to maintain due to their simpler design. Multi-stage pumps require more specialized knowledge for overhaul.
ViRhoes: Your Partner in Pump Selection
At ViRhoes, we understand that a pump is an investment in your system’s reliability. Whether you’re evaluating a 2-inch submersible pumpfor dewatering or a high-pressure multi-stage pump for an industrial process, our engineering team is here to provide expert analysis.
Don’t leave your project’s performance to chance.Contact our specialists todey for a personalized consultation. We’ll help you analyze your system requirements, review performance data, and recommend the most efficient and cost-effective centrifugal pump solution for your specific needs.
