Stop Oversizing: A Precision Methodology for Selecting the Right Centrifugal Pump
For decades, a simple rule has governed much of industrial pump selection: “when in doubt, size up.” This conservative approach, intended to build in a safety margin, often leads to a classic case of “a large horse pulling a small cart” – a significant waste of energy and capital. At Virheos, we advocate for a smarter approach. Precision selection isn’t just about getting a pump that works; it’s about getting the optimal pump for your exact operational reality, maximizing efficiency and minimizing your total cost of ownership.This guide details a precision methodology for selecting centrifugal pumps, ensuring your next industrial pump, whether it’s a submersible water pump for deep wells or a powerful vertical centrifugal pump for a high-rise building, is perfectly matched to its duty.
The High Cost of “Oversizing”
Oversizing a pump creates a cascade of inefficiencies:
- Excessive Energy Consumption:The pump operates far to the right of its Best Efficiency Point (BEP), drawing more power than necessary.
- Increased Cavitation Risk:To control an oversized pump, discharge valves are often throttled, raising the risk of damaging cavitation.
- Premature Wear:Operation away from the BEP induces higher radial loads on the impeller, accelerating bearing and seal failure.
- Higher Initial Cost:You pay for a larger pump, a larger motor, and potentially more robust piping than you need.
The Virheos Precision Selection Methodology
Follow these four steps to move from guesswork to precision.
Step 1: Precisely Define the System Requirement (The “Load”)
The foundation of good selection is accurate system data. Don’t rely on rough estimates.
- Flow Rate (Q):Determine the exact required flow rate in cubic meters per hour or gallons per minute. Is it constant or variable? For an irrigation pump, this depends on crop type and area. For a process centrifugal water pump, it’s defined by the production rate.
- Total Dynamic Head (TDH):This is the total pressure the pump must overcome. It is not just the vertical lift. TDH is the sum of:
* Static Head:The vertical height difference the fluid must be raised.
* Friction Head:The pressure loss due to fluid flow through pipes, fittings, and valves. This is where precision is critical.
Step 2: Calculate Friction Loss Meticulously
Friction loss is frequently underestimated or padded with excessive safety factors. Use established methods like the Hazen-Williams or Darcy-Weisbach equations, considering:
- Pipe material and internal diameter
- Pipe length
- Number and type of fittings (elbows, tees, valves)
- Fluid properties
Accurate friction calculation prevents you from selecting an oversized end suction pump to overcome imaginary resistance.
Step 3: Analyze the Full Operational Profile
A pump rarely operates at a single, fixed point. Analyze how the system behaves over time.
- Daily/Seasonal Variations:Does the demand for your self priming centrifugal pumpchange between summer and winter? Does your irrigation pump have different settings for different zones?
- Future Expansion:While some oversizing for future capacity is logical, quantify it. A 10% margin is wiser than a 50% “just in case” addition.
Plot these varying duty points on pump performance curves. The ideal pump is one whose performance curve envelopes all these points, with the most frequent operating condition sitting close to its BEP.
Step 4: Select the Optimal Pump Type and Configuration
With your precise system curve in hand, you can now select the best pump for the job.

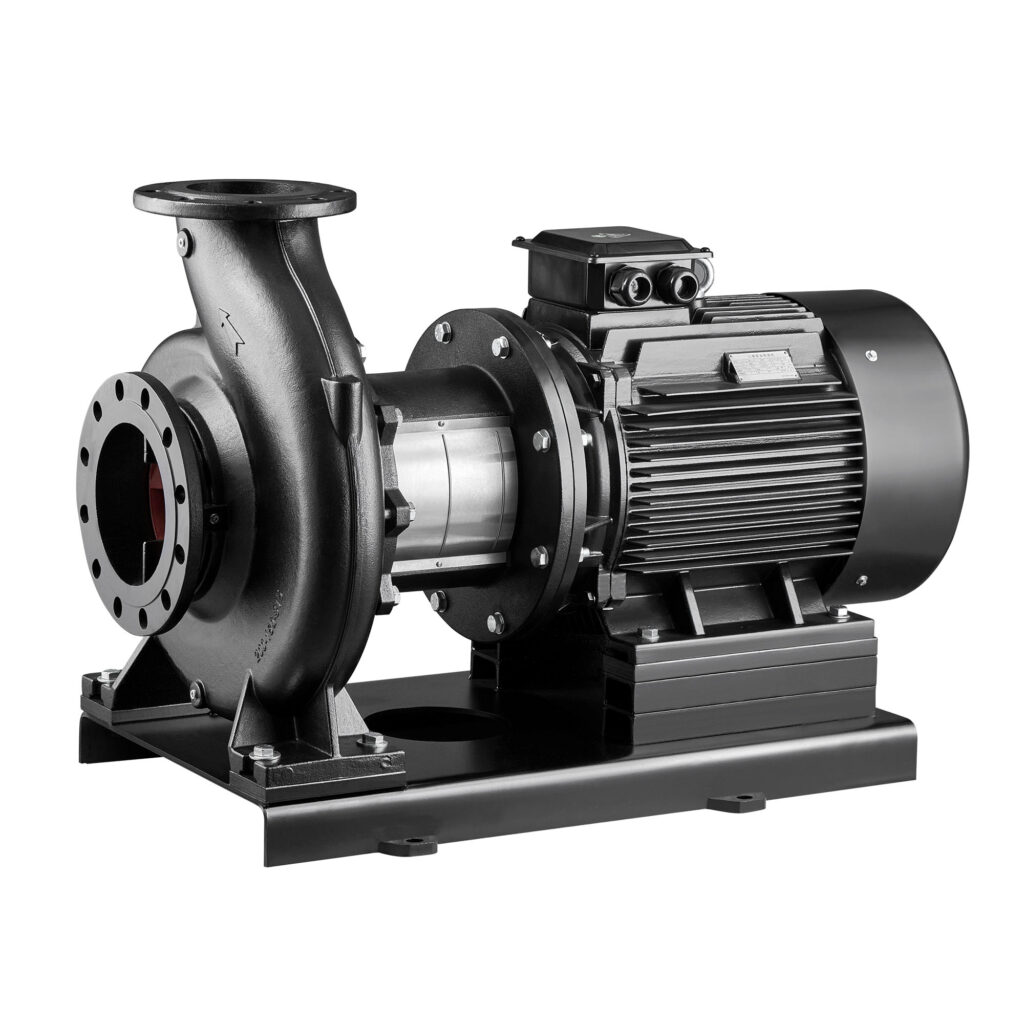

For high-flow, low-to-medium head applications:A standard end suction pump is often the most efficient and cost-effective choice.

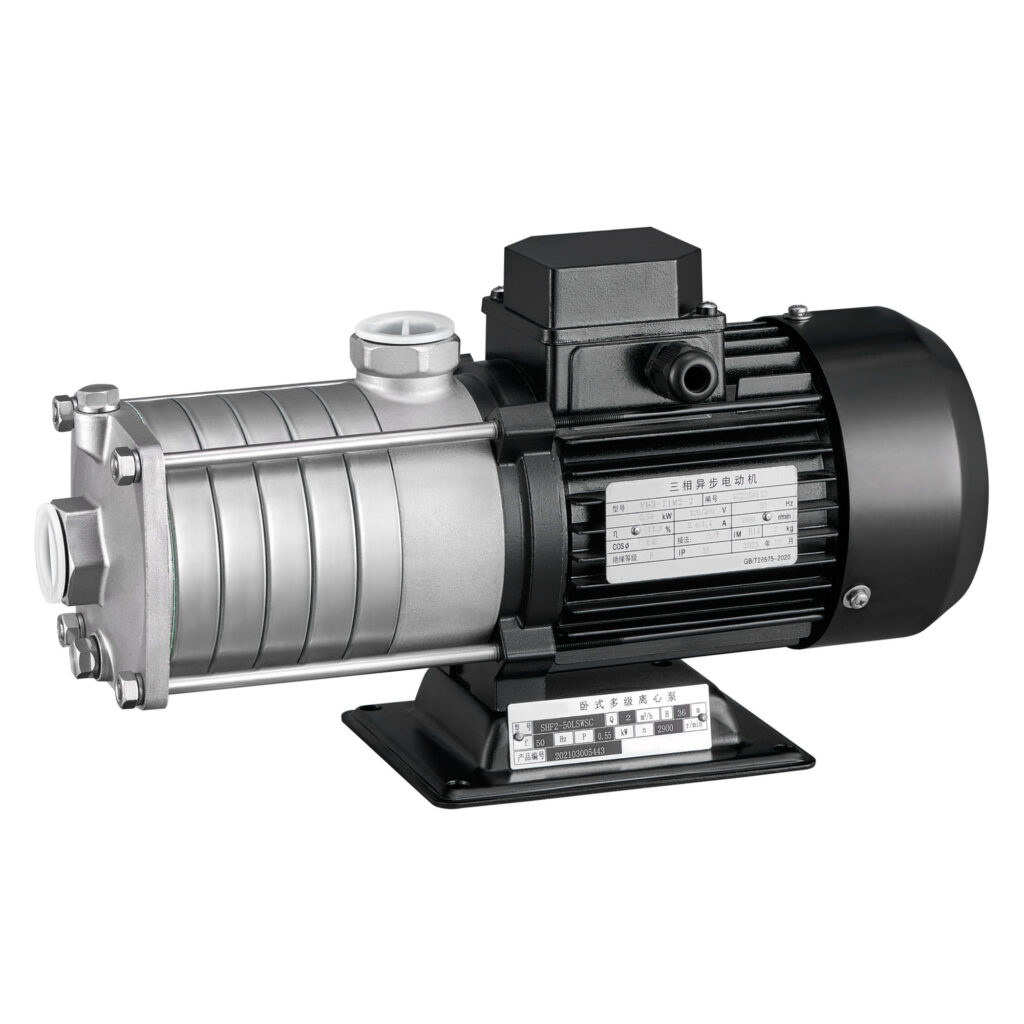

For high-head, space-constrained applications:A vertical centrifugal pump(or multi-stage pump) is ideal, as it provides significant head in a compact footprint.

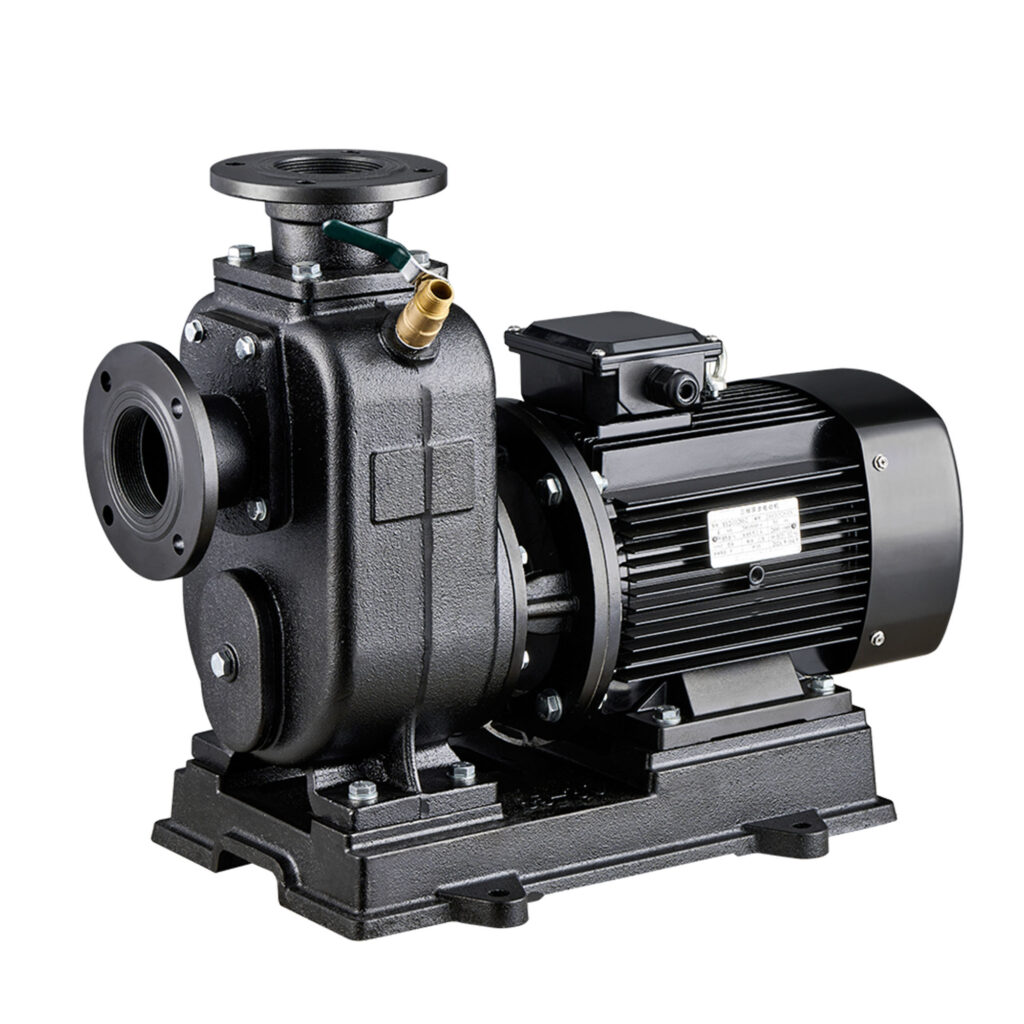

For applications requiring easy priming:A self priming centrifugal pump is essential for situations where the pump may be located above the fluid source.
For corrosive fluids or hygienic applications:A stainless steel centrifugal pumpprovides the necessary durability and cleanliness.
Virheos: Your Partner in Precision
At Virheos, we don’t just sell pumps; we deliver optimized fluid handling solutions. Our experts use advanced selection software that incorporates real pump curves and precise hydraulic calculations to recommend the perfect pump for your system—be it a robust submersible water pump for agricultural use or a complex multi-pump industrial system.Stop the waste of oversizing. Embrace an engineered approach to pump selection that saves energy, reduces downtime, and extends equipment life.
Ready to optimize your pump system? Contact the Virheos engineering team today for a precise system analysis and pump recommendation.
