What Are In-Line Vertical Pumps?

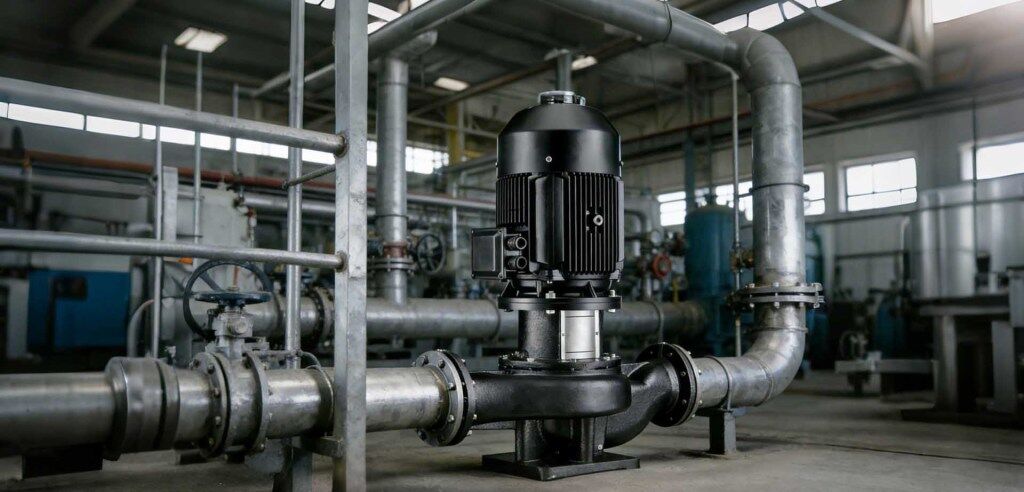

     Fundamentally, what is an inline pump? At its core, an in-line vertical pump is a single-stage centrifugal pump where the suction and discharge flanges are positioned along the same vertical centerline. Unlike end-suction pumps that require a 90-degree elbow at the inlet, these pumps feature a motor mounted directly above the pump casing, creating a compact, integrated unit that installs directly within the pipeline system.

     The vertical inline pump working principle follows the same fundamental mechanics as standard centrifugal pumps: a rotating impeller transfers kinetic energy to the fluid, which is then converted into pressure energy within the volute casing. The distinguishing feature lies in the physical configuration. This vertical, inline arrangement allows the pump to be bolted directly into the piping run, supporting its own weight and hydraulic forces while eliminating the need for substantial baseplates, complex foundations, and extensive alignment procedures typically associated with horizontal pumps. This design philosophy shares similarities with the compact layout of certain mechanical systems, achieving performance efficiency through optimized spatial utilization.

Types and Variations

     While the fundamental design remains consistent, in-line vertical pumps offer several variations to meet diverse operational needs:

• Standard In-Line Pumps: The most common type, used for general water transfer, HVAC circulation, and industrial processes handling clean or mildly corrosive fluids.
• Vertical In-Line Fire Pumps: These are UL/FM listed, heavy-duty units manufactured to strict NFPA 20 standards. Engineered for maximum reliability, they can start under load and provide consistent pressure for fire suppression sprinkler and standpipe systems.
• Close-Coupled vs. Frame-Mounted Configurations: Close-coupled models mount the impeller directly on an extended motor shaft, offering exceptional compactness. Frame-mounted (or separated) designs utilize a coupling between independent pump and motor shafts, providing greater motor selection flexibility and potentially easier maintenance access.
• Material Variations: Construction materials range from cast iron and bronze for water applications to stainless steel (304, 316) and advanced alloys like Hastelloy for aggressive chemical services.

How Do They Work?

     The operation of an in-line vertical pump represents an elegant application of centrifugal force. Here’s a detailed breakdown of the vertical inline pump working principle:

1. Priming: The pump casing must be filled with fluid before startup. Once primed, the inline design typically maintains prime more effectively than many horizontal counterparts.
2. Impeller Rotation: When activated, the motor spins the impeller at high speed (typically 1750 or 3500 RPM).
3. Centrifugal Force Generation: The rotating impeller vanes propel fluid outward from the center (eye) to the periphery, dramatically increasing fluid velocity (kinetic energy).
4. Energy Conversion: High-velocity fluid discharges into the volute casing. As the volute’s cross-sectional area expands, fluid velocity decreases. According to Bernoulli’s principle, this velocity reduction results in a corresponding pressure increase (pressure energy).
5. Discharge: Pressurized fluid exits through the discharge flange – which aligns with the suction flange – and continues through the piping system.
6. Continuous Flow: The outward fluid movement creates a low-pressure zone at the impeller eye, drawing additional fluid through the suction flange and establishing smooth, continuous flow.

     This fundamental principle remains consistent whether applied to a single-stage inline pump or a more complex vertical multistage pump. For the latter, understanding how does a vertical multistage pump work involves recognizing that this process repeats sequentially across multiple impellers and diffusers arranged in series, with each stage incrementally increasing fluid pressure.

Advantages (Why Vertical Pumps Are Used)

     The widespread adoption of in-line vertical pumps stems from compelling advantages that clearly demonstrate why vertical pumps are used across diverse applications:

• Space-Saving Design: The primary benefit. These pumps occupy minimal floor space as they require no baseplate and are supported by the pipeline itself – invaluable in cramped pump rooms, skids, or modular installations.
• Simplified Installation and Alignment: Vertical in-line pump installationis generally quicker and less labor-intensive. The pump simply suspends within the pipeline and bolts between flanges, eliminating the need for precise baseplate grouting and coupling laser alignment required with horizontal pumps (though proper pipe support remains critical).
• Reduced Footprint and Foundation Costs: No extensive concrete foundation is necessary, yielding significant savings in installation materials and time.
• Maintenance Accessibility: Many models allow motor detachment without disturbing suction or discharge piping, facilitating relatively straightforward access to seals and impellers.
• Operational Versatility: Available in extensive material selections, sizes, and configurations to handle everything from chilled water to light chemical solutions.

Pricing and Budget Considerations

The cost of in-line vertical pumps varies significantly based on technical specifications. Key pricing factors include:

• Construction Materials: Standard cast iron pumps for water applications cost substantially less than AISI 316 stainless steel models for chemical services.
• Size and Performance Specifications: Larger pumps with higher flow (GPM) and head (feet) ratings command premium pricing due to increased material requirements and more robust components.
• Motor Specifications: Premium efficiency (IE3/IE4) motors, explosion-proof enclosures, or specific voltage requirements increase costs.
• Special Features: Mechanical seal types (single, double, gas), specialized coatings, and instrumentation (pressure gauges, vibration sensors) elevate pricing.
• Brand and Certification: Pumps from established manufacturers with specific certifications (like UL for fire pumps) carry brand premiums.

Estimated Price Ranges:

• Small, basic cast iron in-line centrifugal pump(1-5 HP): $500 – $3,000
• Standard stainless steel process pump (5-20 HP): $2,500 – $10,000
• Vertical in-line fire pump(UL listed, 25-50 HP): $8,000 – $25,000+

     Always account for additional vertical in-line pump installation expenses: robust pipe supports, isolation valves, strainers, and potential electrical modifications. Investing in properly specified and installed equipment from reputable suppliers like Virheos prevents costly operational downtime and repair expenses.

Conclusion

     In-line vertical pumps provide an ingenious engineering solution where reliability, performance, and spatial constraints converge. By comprehending what an inline pump fundamentally is, how the vertical inline pump working principle functions, and recognizing its key advantages, you can make informed decisions for your next project. Their simplified vertical in-line pump installation requirements and minimal maintenance needs establish these pumps as cost-effective choices throughout the system lifecycle.

     Whether your application demands a basic circulator or a certified vertical in-line fire pump, selecting the appropriate model remains paramount. For expert guidance in sizing, material selection, and sourcing high-quality in-line vertical pumps tailored to your specific requirements, contact the fluid handling specialists at Virheos today. Let our technical expertise ensure your systems operate smoothly and efficiently for years to come.
